Introducation:

Coilovers and shocks are parts of the suspension system on automobiles. The major difference between coilovers and standard shocks is that coilovers afford drivers much more control over a vehicle's suspension system.

Features:

- Lowered height adjustment from 1" - 3" which allow lower center of gravity and also add a more aggressive stance.

- A 24 rebound damping adjustment level allows you the ability to perfectly dial in your coilover setup. You will experience better ride quality in all road conditions.

- Twin-Tube structure allows sufficient stroke within the shock absorber.

- Complete Suspension Kit of 4 Shock Absorbers 4 Springs for an easy installation.

- Separate height adjustment does not affect damper stroke.

- Height can be adjusted with coilovers installed on the vehicle.

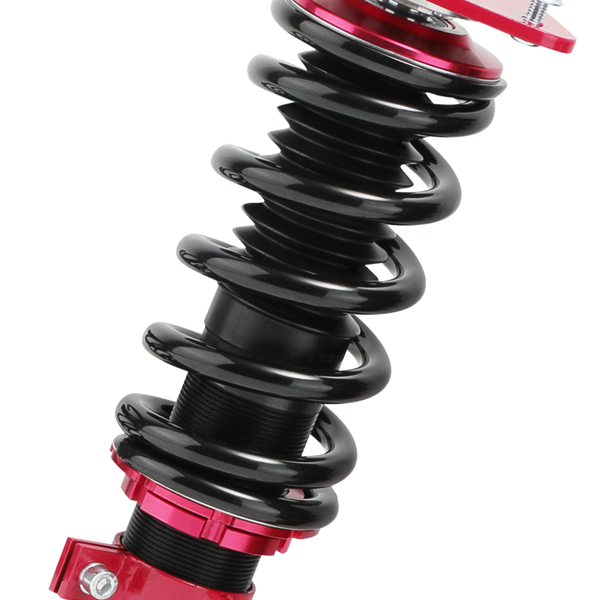

- High Tensile performance spring - STRESS TESTED OVER 600,000 times while the spring distortion is less than 0.04%. Plus the special surface treatment improves the durability and performance.

- Height Adjustment tools included.

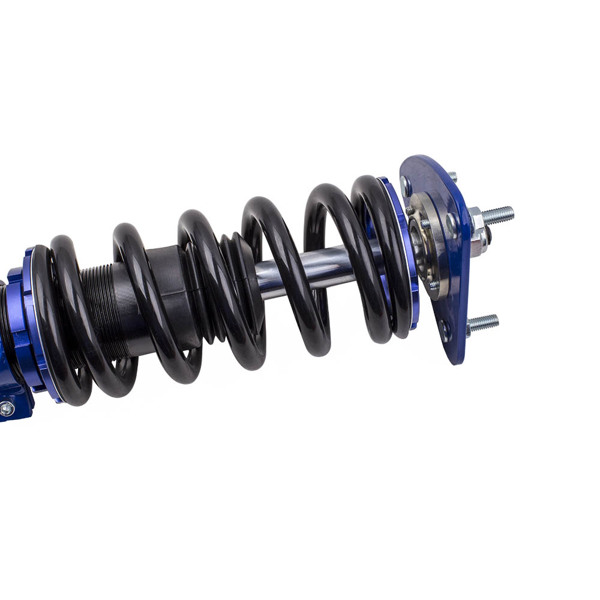

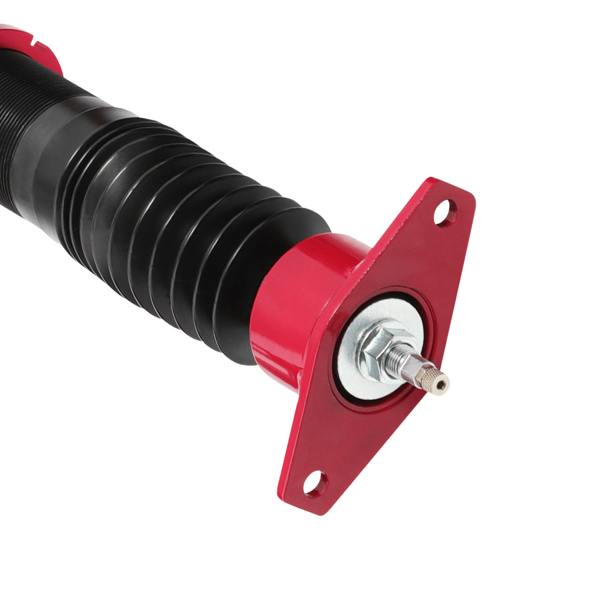

- Pillow ball top mount - It improves the steering feel and response.

- Most pieces in our coilover systems, including mounts, collars and spring perches, are designed from 6061-T6 Billet Aluminum resulting in lightweight, durable and rust resistant components.

Specification:

Top mounts: Front pillow ball top mounts

Damping: 24 levels rebound damping adjustable

Shock type: Twin tube

Adjustable height: Yes, lowering 1'' to 3''

Adjustable camber plate: No

Spring preload: 7-10 mm

Spring rate Front: 10kg/mm (560 lbs/in)

Spring rate Rear: 7kg/mm (392 lbs/in)

Color: Red

Application:

for Mazda 3 BK 2004-2009

for Mazda 3 BL 2009-2013

(includes Mazdaspeed 3)

Package Includes:

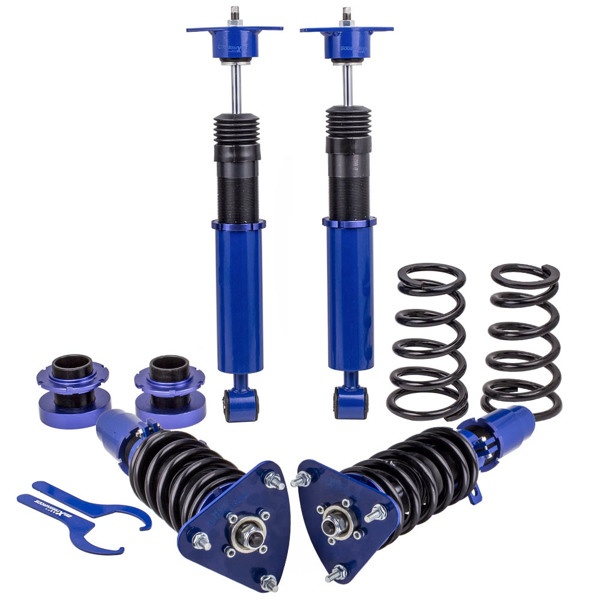

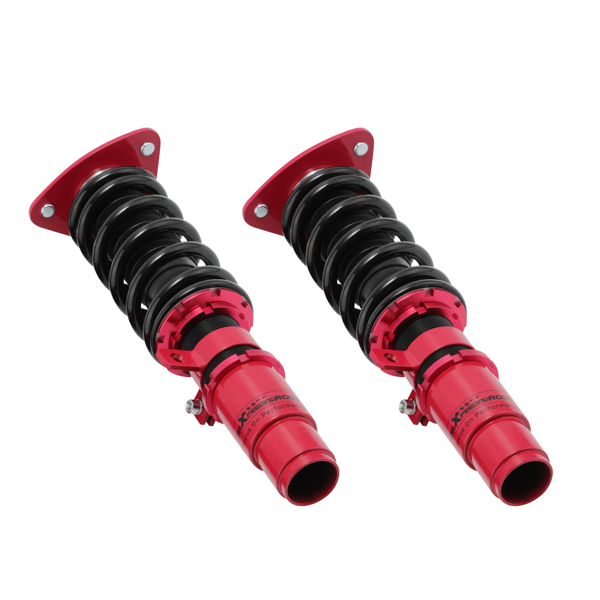

4PCS of Coilovers (2 piece front + 2 pieces rear)

Code:MGGRP

Authority ID：MXR02FXSY
