Applications

For Audi RS4 V6 Biturbo with ASJ/AZR Engine 2000-05 Left Side

For Audi A4 V6 Bi-turbo with AZR/ASJ Engine 2000-05 Left Side

Note:For the car model below need modification:

For Audi A6 with AJK, ARE, BES, AGB Engine 1997-01

For Audi A6 Allroad with AJK, ARE, BES, AGB Engine 1997-

For Audi S4 with AJK, ARE, BES, AGB Engine 1997-01

Turbo Model:K04-025 ( Left side)

Engine Code:ASJ / AZR

Part Number OEM Number

53049880025,5304-988-0025, 5304 988 0025,

53049700025, 5304-970-0025, 5304 970 0025,

078145701M, 078145703M,

078145703MX, 078145703MV

Note:For the OE/PN number below need modification:

53039880016,5303-988-0016, 5303 988 0016,

53039700016, 5303-970-0016, 5303 970 0016,

078145701S, 078145701R, 078145701H, 078145701L,

078145703D, 078145703H, 078145703L,

078145703R, 078145703S, 078145703C, 078145703B

Feature:

* Turbine housing adopts ductile iron QT450-10, withstand temperatures up to 700℃.

* Steel Turbine Wheel made from the special K418 alloy to achieve high oxidation resistance and stability under high temperatures up to 900℃.

* Cast aluminium blades with good air tightness and corrosion resistance

* OEM-quality and size with little modification

Specification:

Turbo: Model: K04-025

Engine: ASJ / AZR

Cooling Type：Water Cooling

Bearing Type: Floating Bearing

Hosepower: 280KW/380PS

Condition: 100% brand new

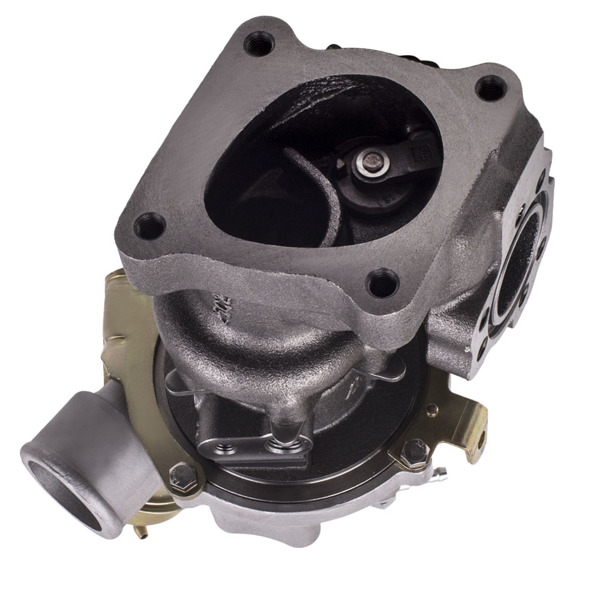

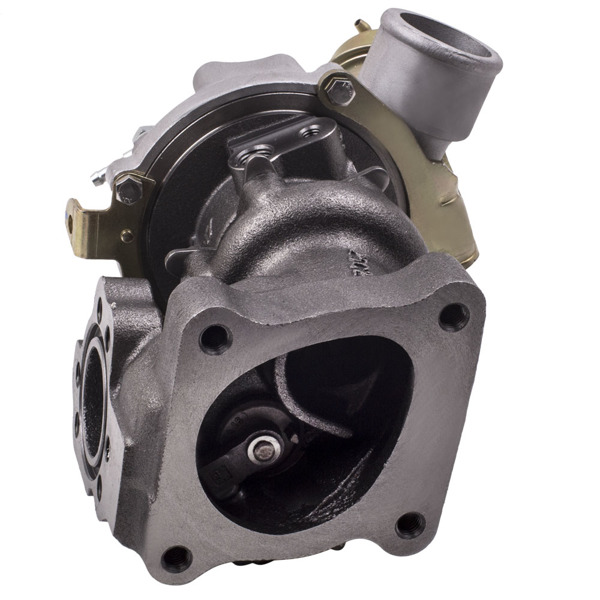

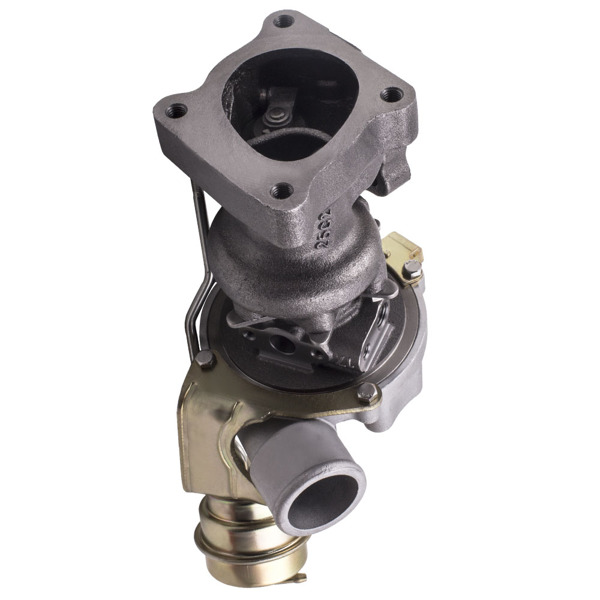

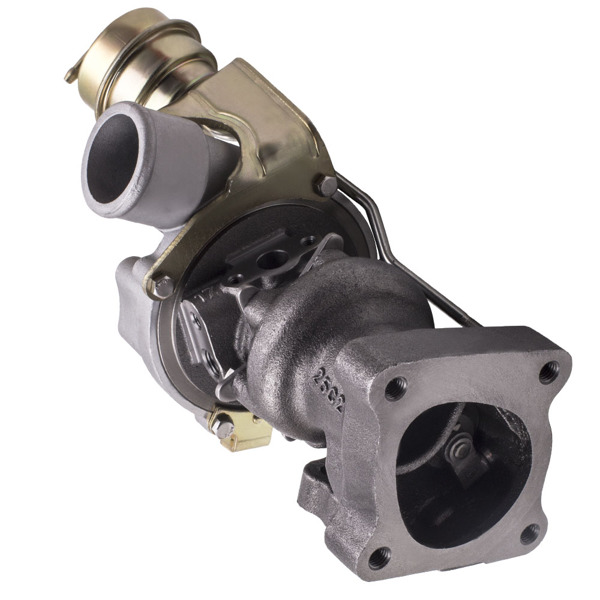

Accessories: You will get exactly as shown in the picture above

Pakage Weight: 6560g

Pakage Size: 30* 28 * 24 cm

Important Notice

* This K04-025 turbo can replace the k03-016 turbocharger, but you may need replace the intake hose of the cold side.

* For Audi A6 Allroad, these will not fit on Automatic Transmission Models without Modifications

* Please confirm your original turbo part number matches up our number above

* Professional installation is highly recommended
