Introduction:

Gasoline engine, any of a class of internal-combustion engines that generate power by burning a volatile liquid fuel (gasoline or a gasoline mixture such as ethanol) with ignition initiated by an electric spark.

Typical Application for:

Compressor Scarifier Lawnmower Pump Generator Pressure Washer Gokart Lawnmower Cement Mixer Dust Collector Flail Mower

Technical Data:

Compression Ratio : 8.5:1

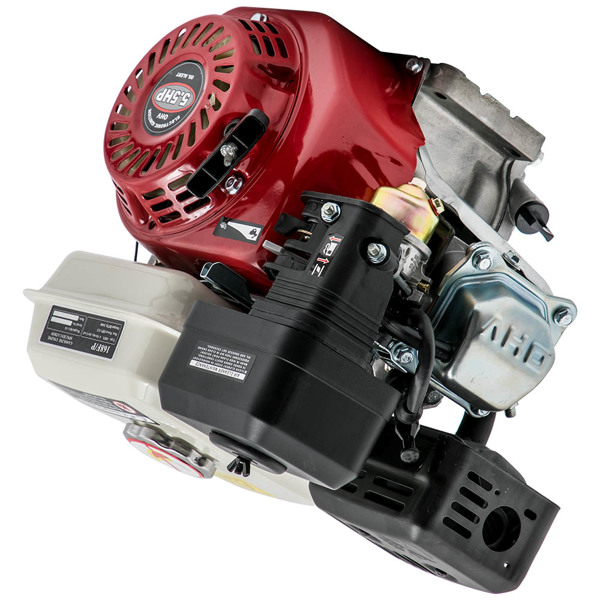

Engine Type : 168F/ Air Cooled 4 Stroke OHV Single Cylinder

Maximum Output : 5.5 HP / 4.1 KW

Rated Output : 4.0 HP / 3.0 KW

Bore Stroke : 70x55mm

Displacement : 168cc

Starting System : Pullstart

Fuel Capacity : 3.6 Litres

Engine Oil Capacity : 0.6 Litre

Overall Length: 360 mm / 14.17 inches

Overall Width: 305 mm / 12.01 inches

Overall Height: 330 mm / 12.99 inches

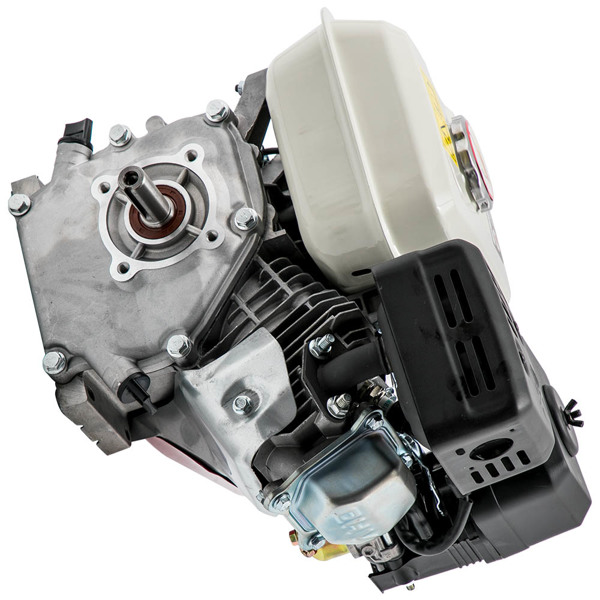

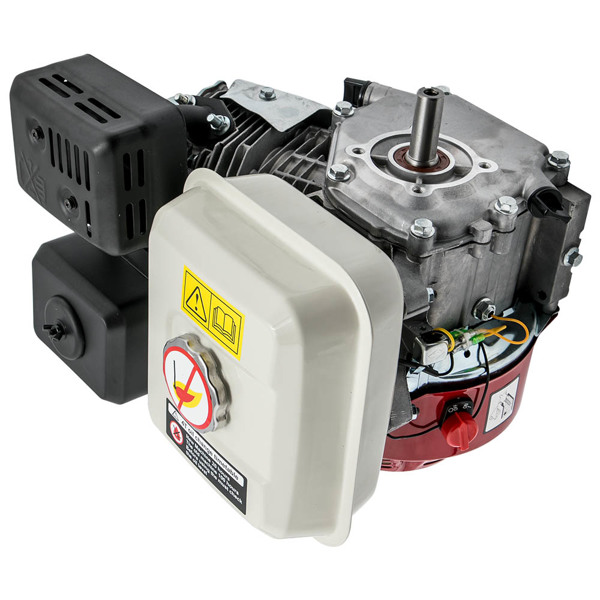

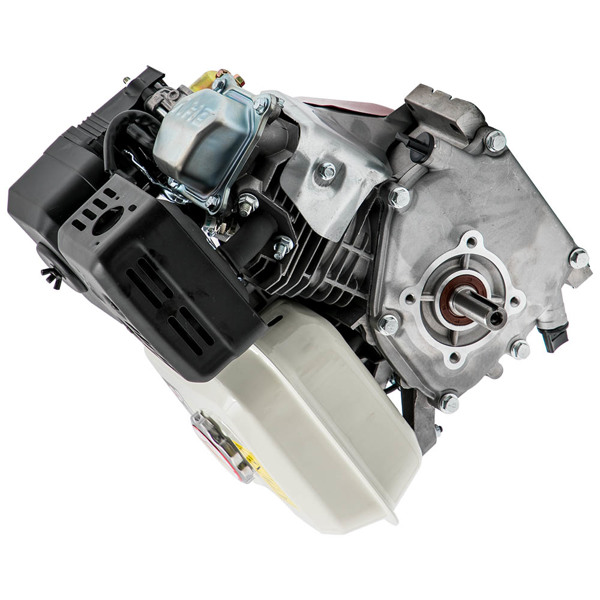

Diameter of Drive Shaft: 20 mm / 0.79 inches (NOT 0.75 INCH, NOT 3/4'' )

Length of Drive Shaft / Crankshaft: 250mm / 9.84 inches

Distance Between Bottom Fixing Holes (Clutch Side, Centre of Eye to Centre of Eye): 165 mm / 6.5 inches

Distance Between Bottom Fixing Holes (Pullstart Side, Centre of Eye to Centre of Eye): 165 mm / 6.5 inches

Distance Between Bottom Fixing Holes (Pullstart to Clutch across, Centre of Eye to Centre of Eye): 77.06 mm / 3.03
