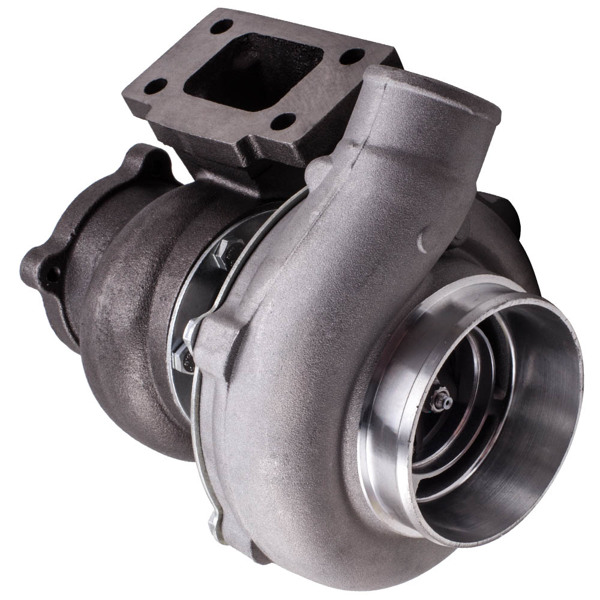

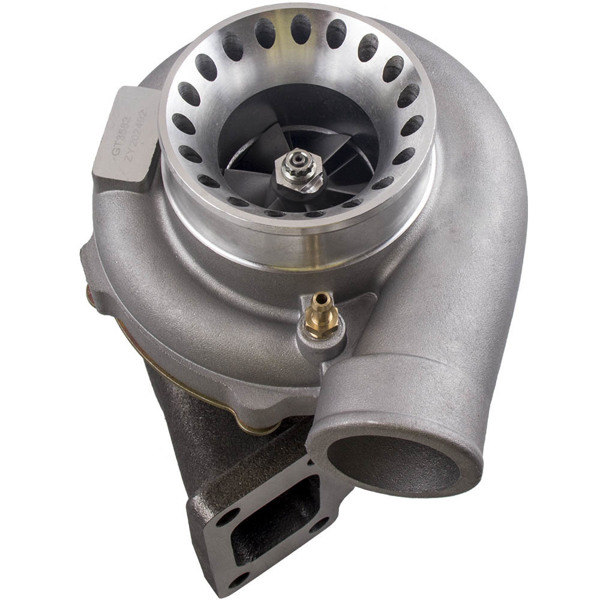

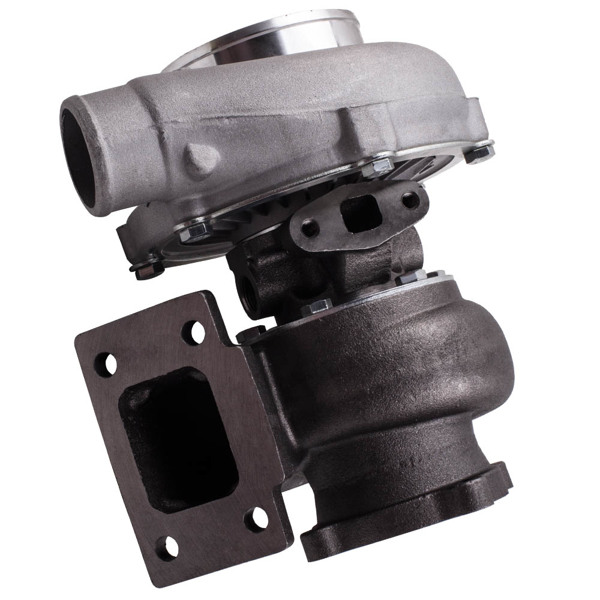

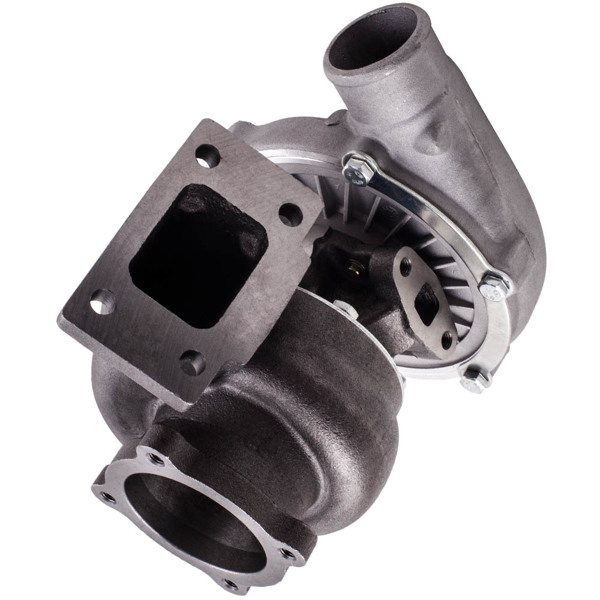

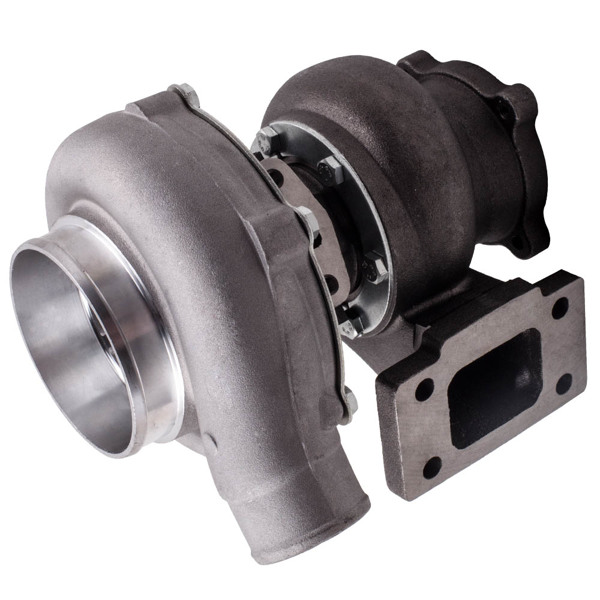

The GT3037 Turbocharger is a large turbo capable of generating 500 HP, depending on application and with the correct tuning. The GT3037 is generally used for larger displacement engines of 3.0L and up, since these types of engines can produce enough exhaust volume to push the GT3037

Application:

Perfect for all 4/ 6 cyl 2.5L-3.0L engines

Horse Power: Boost Horse Power up to 500BHP

Notice:This model is a universal turbo. Please confirm whether there is enough space in your car to install this turbo before purchasing.

Specification:

Exhaust Inlet (Turbo Manifold) Flange:Standard T3 Flange

Exhaust Outlet Flange:4-Bolt Flange

Turbine Trim: 74.2

Turbine Inducer Diameter: 64.8mm

Turbine Exducer Diameter: 55.8mm

Turbine A/R:0.82

Compressor Trim: 48.1

Compressor Inducer Diameter: 52.7mm

Compressor Exducer Diameter:76mm

Compressor A/R:0.6

Wastegate: External Wastegate

Thrust bearing: 270 Degrees

Turbo Type: Individual

Bearing:Journal Bearing

Cooling Type: Water + Oil

Warranty: 1 Year for any manufacture defects

Accessories: You will get exactly as shown in the picture above

Package Size:30 x 28 x 24cm

Package Weight: 8750g

Features:

*Product Material

1. Turbine housing: Ductile iron QT450-10 - temperature resistant up to 700℃

2. Steel turbine wheel: K418 alloy - high oxidation stability and resistance up to 900℃

3. Compressor housing: ZL104 aluminum with lightweight

4. Compressor wheel/blades: Cast aluminium blades – superior air tightness corrosion resistance

*Product Performance

1. Cost-effective turbo increase 20-40% power for your car

2. Rich experience in turbo production and own factory

3. High-Speed oil seal ring and Precision clearance

4. Built for durability and strength

* Technology Advantage:

1. 100% balancing Test by TURBOTECHNICS VSR3

2. G3-min-Flow VNT Turbo testing

3. Advanced Actuator Tester/Programmer

Notice:

* Replace, repair or reconnect air cleaner element per manufacturer's manual to avoid compressor wheel damage.

* Make sure the oil drain line is lower than the turbo itself.

* Gasoline car must install a water cooling device to avoid overheating.

* Ensure exhaust outlet are well sealed by welding

* The degree of modification of the universal turbo depends on your individual vehicle.Professional installation is highly recommended.

* This Turbo is not vehicle specific. Please check the specifications and verify compatibility prior to placing your order.

* Before installing the new turbocharger, the cause that led to the failure of the turbo must be analyzed and eliminated (e.g. insufficient oil supply, foreign bodies in the intake area, crankcase ventilation without function, etc.)!

Notice：

California Prop 65 Warning

Code:MXR02FXSY
