Feature:
Provide better handing and comfort ride for you.
Design for comfort suspension
Heavy duty double convoluted crimped
Application:
for Universal Rear Weld-On Triangulated 4 Link Suspension Kit with Two 2500 Air spring Bags Rear Air spring Bag Mounts;
for Ford F150/F250, for GMC Sierra；
for Chevrolet Silverado;
for Dodge Ram 1500 2500 3500, etc;
for Most Pickup Trucks, Hotrod, Ratrod or Classic Car with 2.75" Axle Tube.
Package Includes:
4 xHeavy Duty Steel Bars

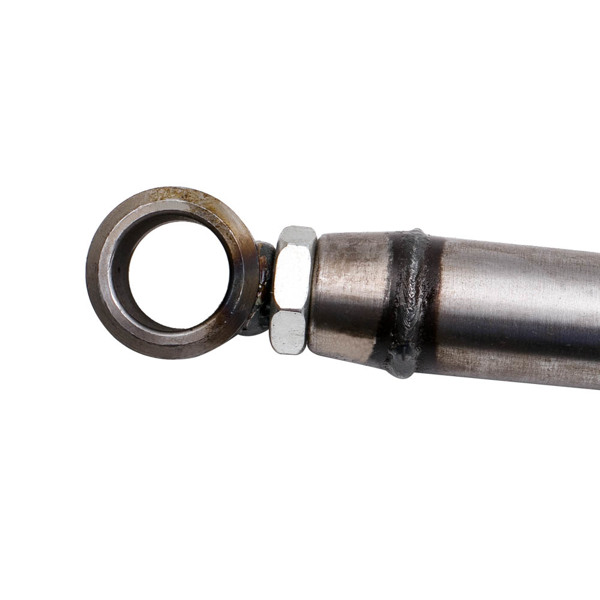

4 x Rod Ends W/ Urethane Bushings

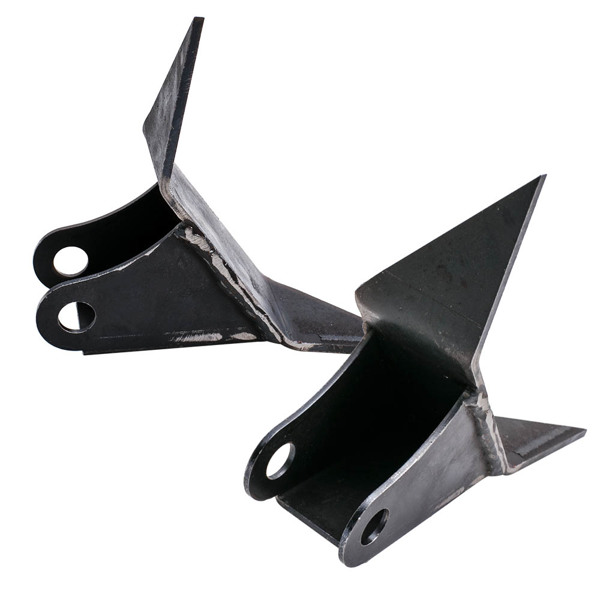

2 x Weld-On Triangulated Frame Mounts
2 x Weld-On Lower Axle Tube Mounts

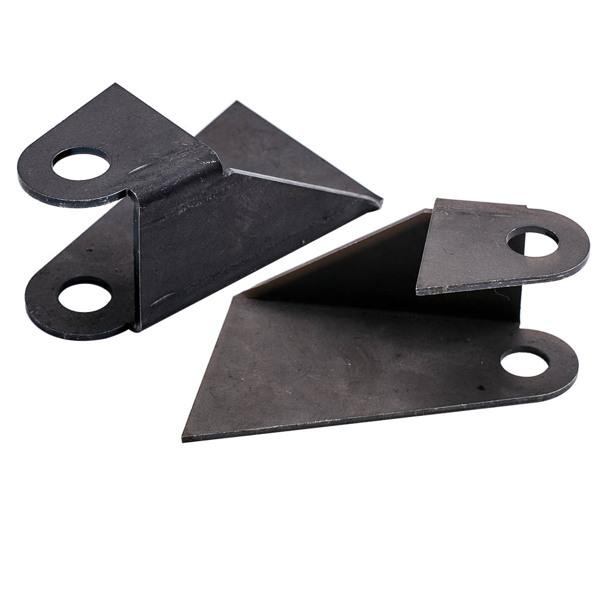

4 x Weld-On Center Link Axle Mounts
2 x Weld-On Side Frame Mounts
8 xButton Head Bolts with Nyloc Nuts
2 xWeld-On LowerAxle Bag Mount
2 xWeld-On Upper Frame Bag Mount
2xStandard 2500 Single 1/2"npt Port Air Spring Bags
4 Link Bar
Dimensions:
Tubing Outside Diameter: 1.25"
Tubing Thick Wall: 156"
All Four Bars: 24.00"
(Center To Center Adjusted All The Way In)
Specs of bag
2500 LBS
Diameter: 6"
Extended: 8"
Closed: 2.75"
Two Top Mounting Holes: Approx 1-3/4" from Eye to Eye
Bottom has One Mounting Hole in Center
All mounting holes are 3/8"-16 UNC
Note: The rod is available in silver and black, please refer to the actual product received.1.Notice：California Prop 65 Warning
